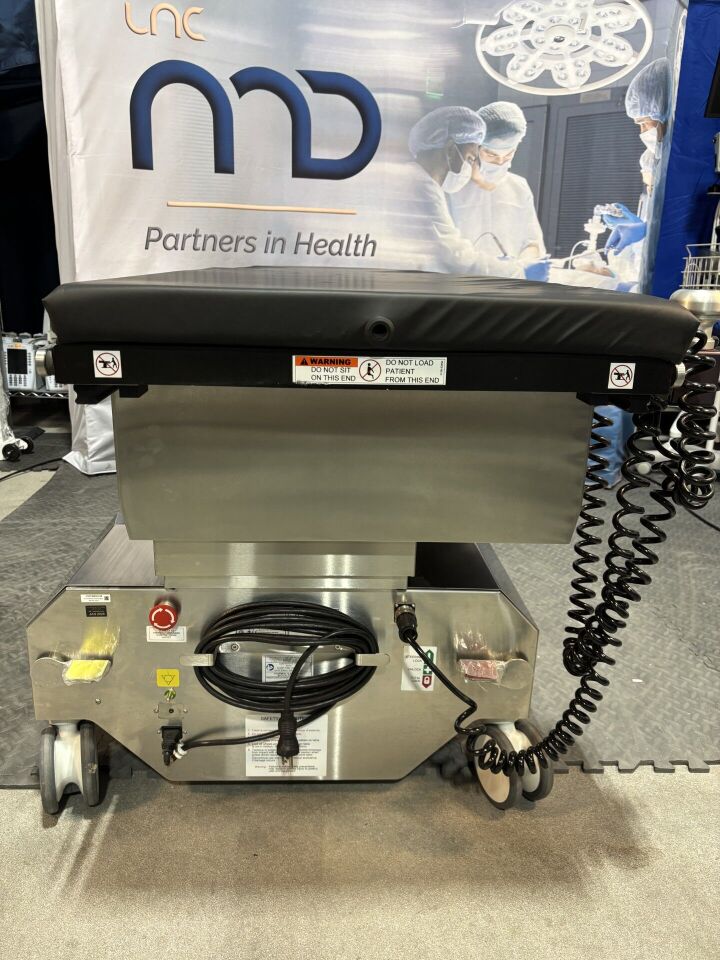

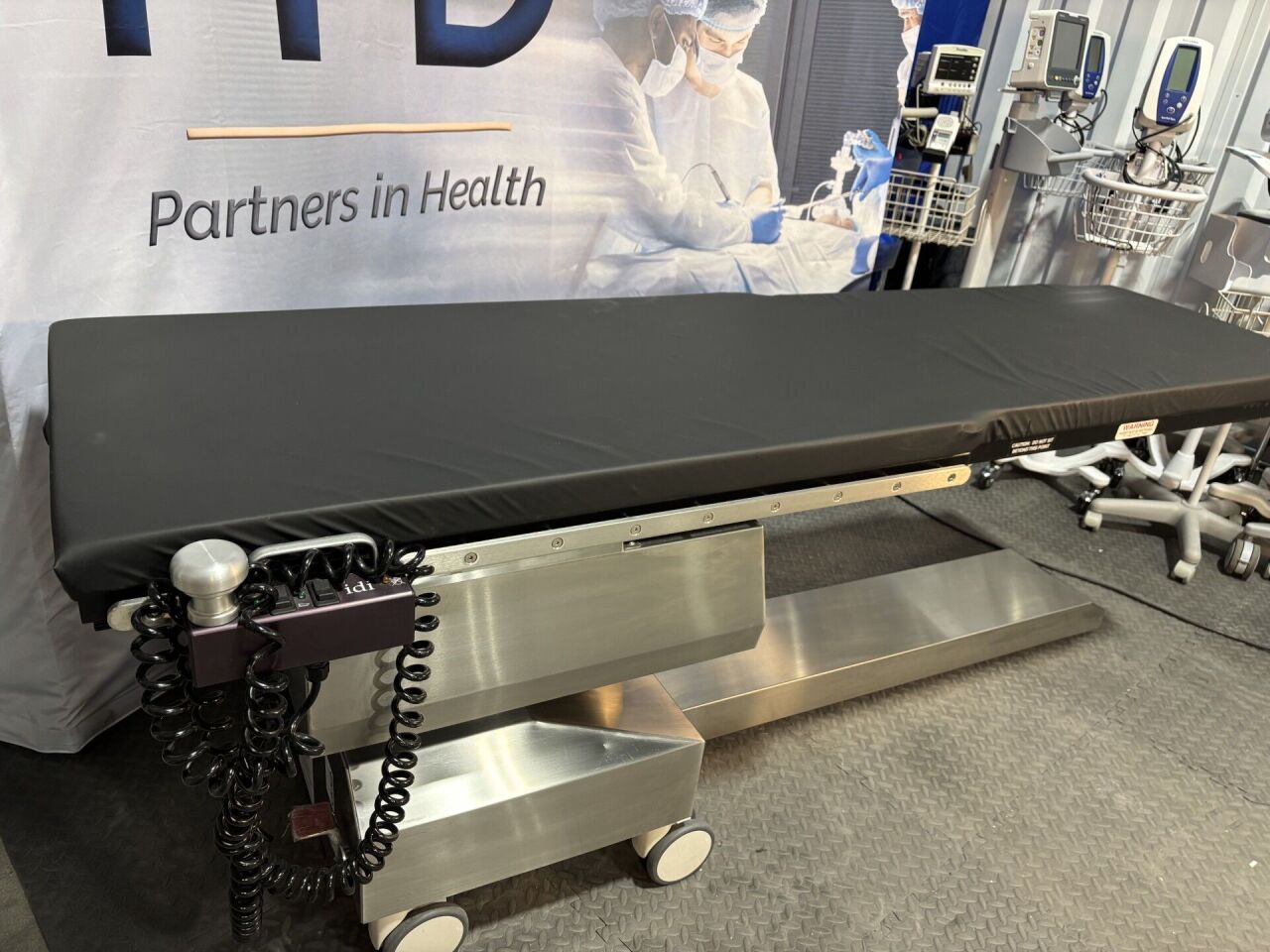

IMAGE DIAGNOSTICS INC 100-4T G2 Ultrasound Table

Image Diagnostics, Inc. 100-4T G2 Mobile Imaging Table

The IDI Aspect 100-4T G2 is a premium interventional and vascular C-arm imaging table designed for endovascular, vascular, and interventional procedures requiring a 4-way floating tabletop with Trendelenburg tilt capability.

Key Features:
4-way manual floating tabletop with rail-mounted panning hand control
Trendelenburg Tilt: ±12° with automatic “stop-at-level” positioning
Motorized Elevation: 32″–42″ (81–107 cm) with 2″ tabletop pad
Longitudinal tabletop travel: 32″ (81.3 cm)
Transverse tabletop travel: 8″ (20.3 cm)
Cantilevered carbon fiber tabletop with low x-ray attenuation
Unobstructed imaging area: 62″ (157.5 cm)
Tabletop dimensions: 24″ x 84″ (61 x 213.4 cm)
Patient weight capacity: 450 lbs. (204 kg)
Easy-to-clean stainless steel covers
Locking swivel casters for easy transport and positioning
Battery backup operation
120 VAC / 230 VAC compatible

Automatic Safety Features:
Longitudinal float automatically locks when table is out of level
Transverse float available regardless of tilt position

Electrical: 110V @ ≤10A (230V optional)

Certifications: ETL listed to IEC 60601-1 and IEC 60601-2-46

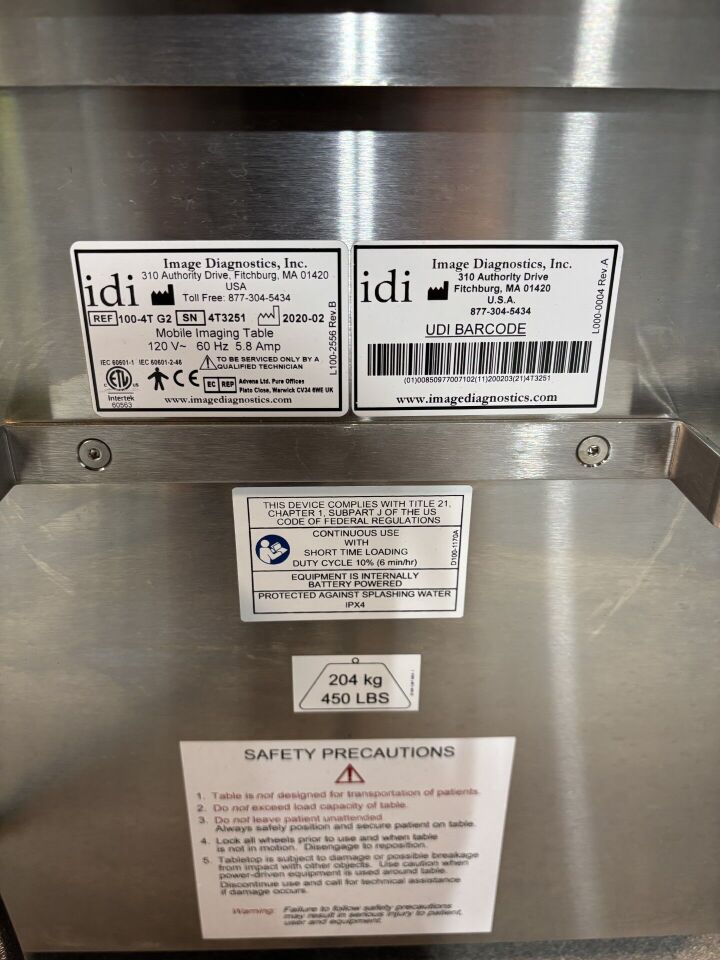

S/N: 4T3251

DOM: 02/01/2020

Specifications:
• Condition: Used – Excellent
• Brand: IMAGE DIAGNOSTICS INC
• Type: Ultrasound Table
• Model: 100-4T G2
• MPN: 100-4T
• Height: 31 inches
• Length: 79 inches
• Width: 27 inches
