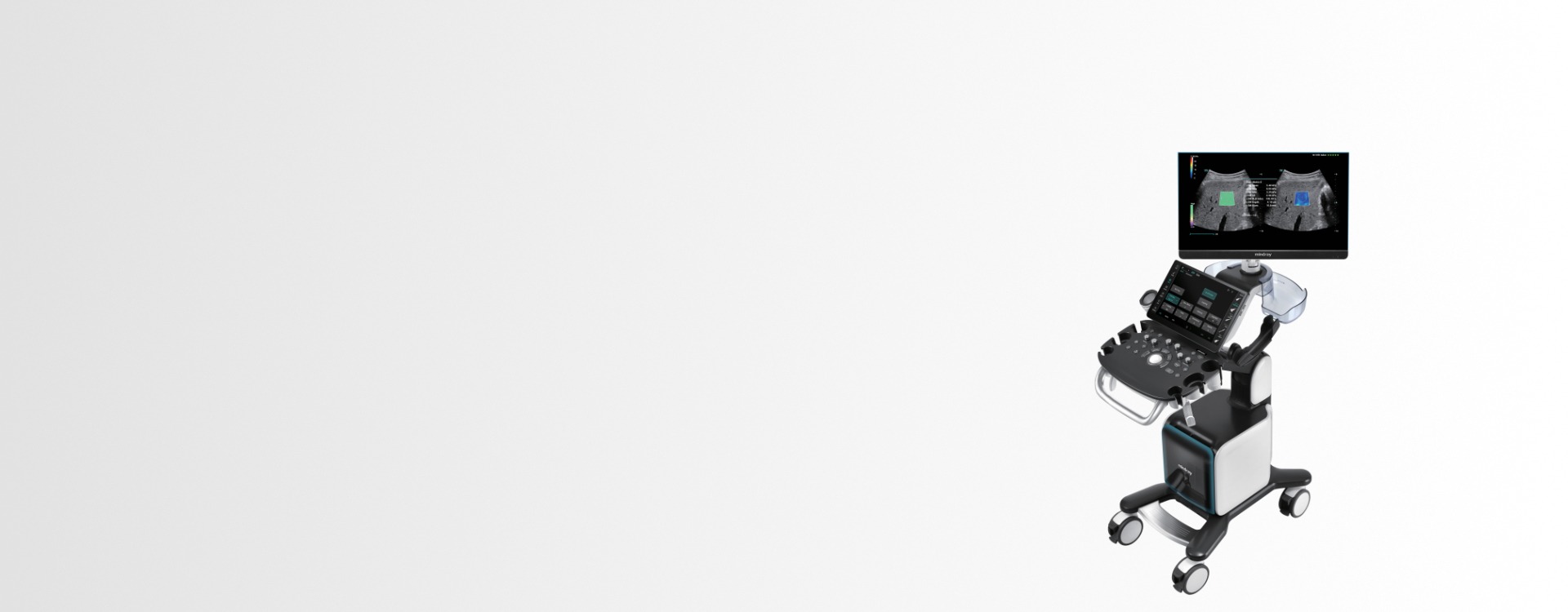

Mindray Consona N9 Diagnostic Ultrasound

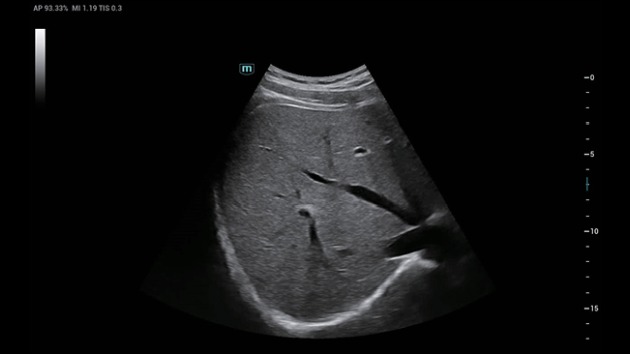

The Mindray Consona N9 is a premium shared-service diagnostic ultrasound system built on the ZST+ channel-data platform — engineered to break the traditional trade-off between spatial resolution, temporal resolution and tissue uniformity for exceptional image quality across General Imaging, Women’s Health and Cardiovascular exams.

Highlights

• ZST+ platform — channel-data-based processing for continually refined imaging.
• iTouch⁺ one-touch real-time image optimization.

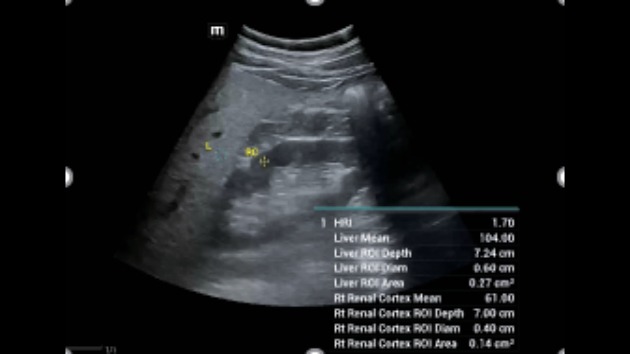

• Smart HRI — automatic liver/renal-cortex recognition and brightness-ratio calculation for hepatic-steatosis assessment.

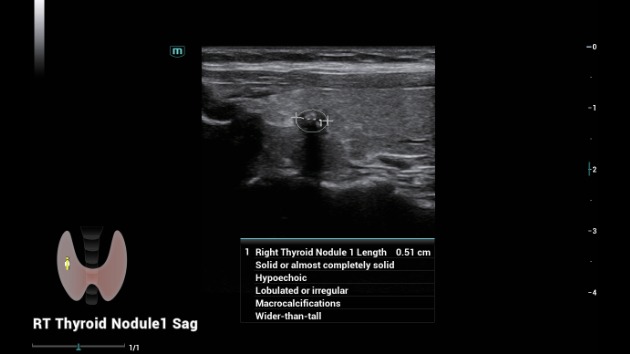

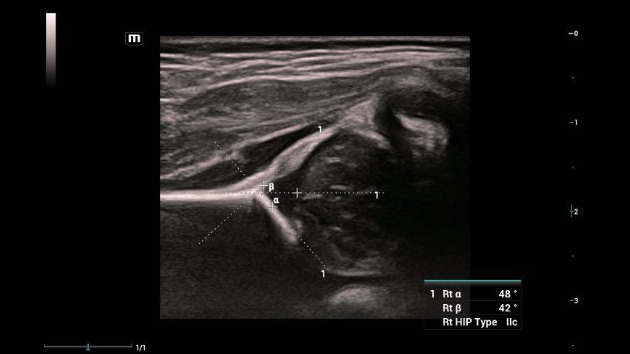

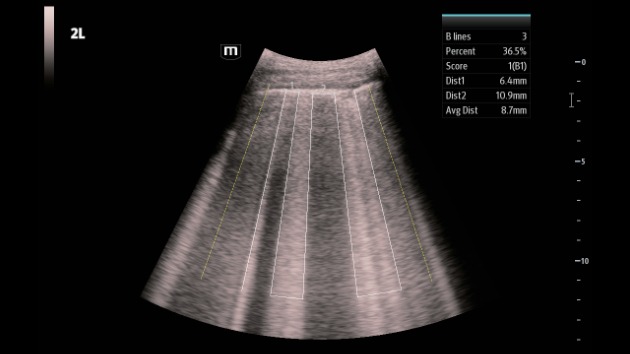

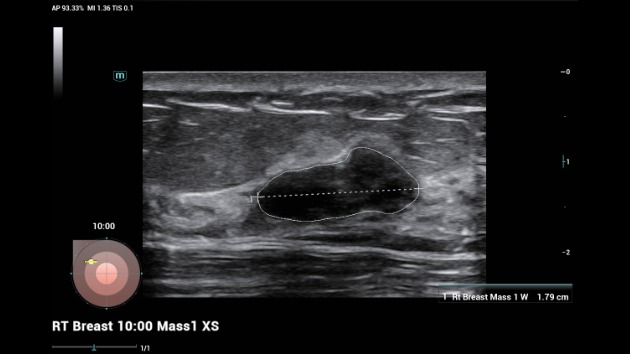

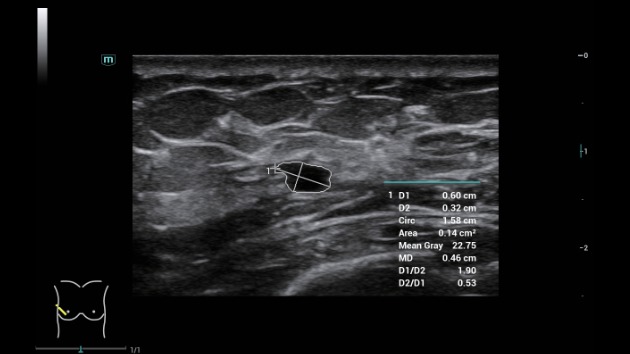

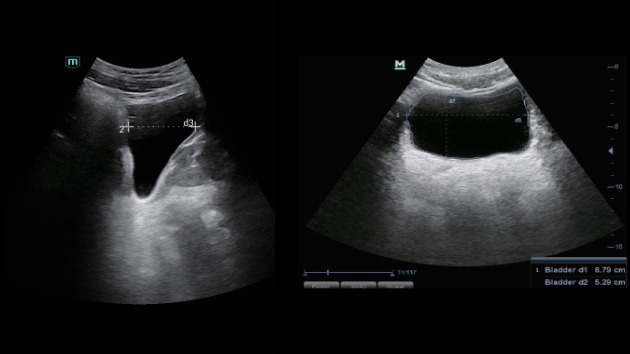

• Smart Bladder, Smart Hip (Graf α/β angles), Smart B-Line, Smart Calc, Smart Breast (BI-RADS) and Smart Thyroid (TI-RADS) AI workflows.
• Ergonomic console designed to boost daily throughput.

Standard configuration

• ZST+ imaging platform with B, M, Color, Power, PW, CW, THI and contrast-ready modes
• High-resolution monitor with articulating arm and touch control panel
• iWorks protocol automation and iStation data management
• DICOM 3.0 with comprehensive measurement and reporting packages

Available options

• Advanced elastography, contrast imaging (CEUS) and 4D volume packages
• Cardiovascular / TEE and strain packages
• Additional storage, print and connectivity accessories

Compatible transducers

• Curved array: SC5-1N, C11-3, V11-3H, V11-3, V11-3B, V11-3HB
• Phased array: SP5-1N, P8-2, P8-2Ts
• 4D volume: DE11-3, SD8-1, D7-2
• Linear array: L13-3N, L9-3, L16-4Hs
• Pencil (CW): CW5s, CW2s

Request a quote

IncMD is an authorized Mindray distributor. Contact our team for configuration and availability on the Mindray Consona N9.
