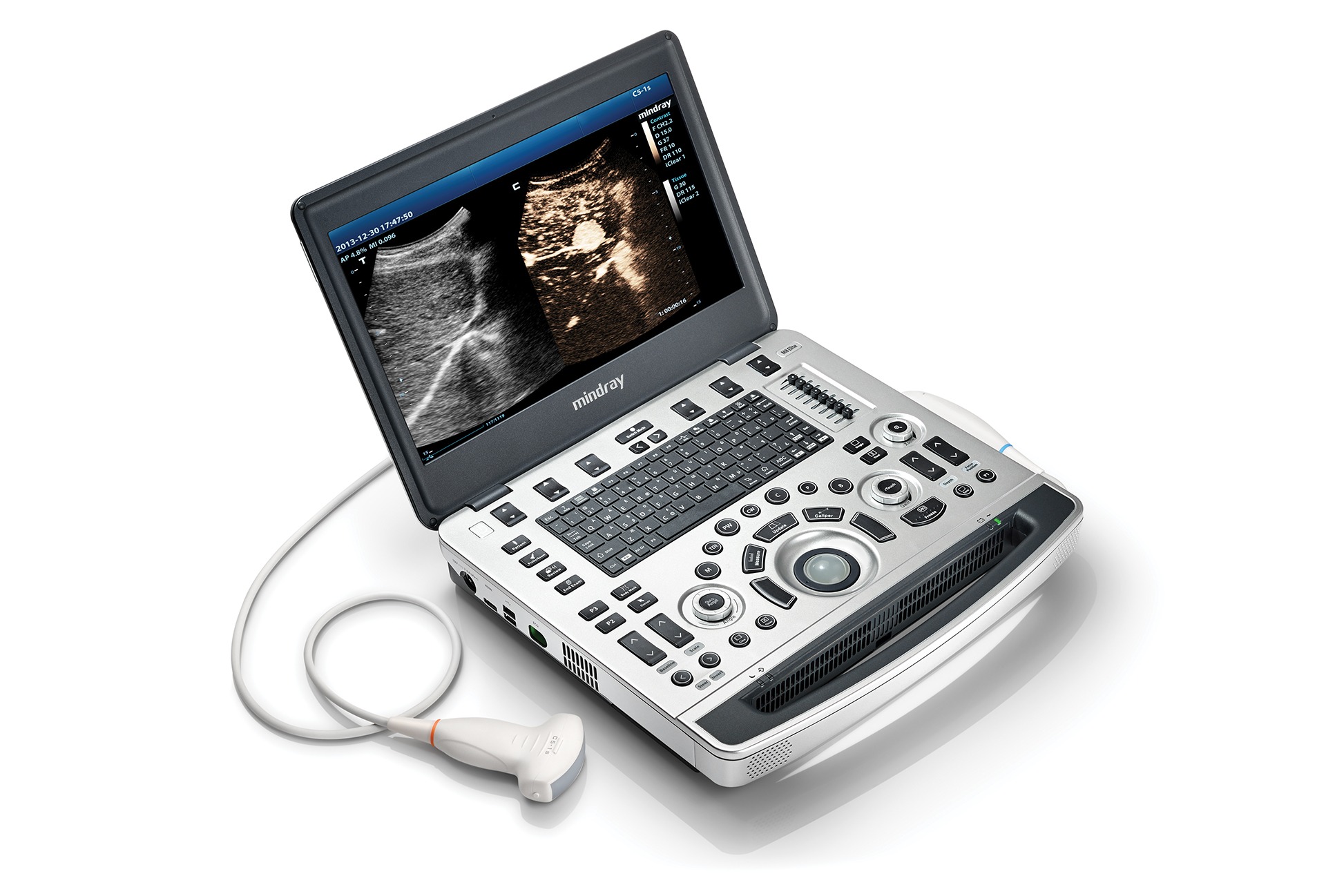

Mindray M8 Elite Portable Ultrasound System

Mindray’s flagship portable. The M8 Elite pairs a full-HD 15-inch display with Echo Boost, Qpath access, and a complete DICOM SR stack — Standard and Advanced configurations up to full cardiac with TEE support.

Standard configuration

• 15-inch LED wide-format HD 1920×1080 monitor · 256GB SSD + iStation™
• HDMI output · 2× USB 3.0 · integrated Wi-Fi · Ethernet adapter · travelling case
• B/M/Color/Color M/Power/Directional Power Doppler · PW Doppler with HPRF · PSH™
• iBeam™ · iClear™ · iTouch™ · iZoom™ · Echo Boost™ · Qpath™ Access
• Shared Service Calculation Package: Abdomen/General, OB, Gyn, Cardiac, Small Parts, Urology, Vascular, Pediatrics, Nerve, Emergency & Critical Care
• HDR Flow · HR Flow · Auto IMT · iNeedle™ · iWorks™
• DICOM Basic, HL7, Worklist + OB/GYN, Vascular, Breast SR
• Advanced configuration adds: Continuous Wave Doppler · Free Xros M™ · TDI + TDI QA · Stress Echo · Tissue Tracking (Strain) · DICOM Query/Retrieve + Cardiac SR · ECG lead with physio function key

Available options

• CW HW module · Free Xros CM™ · TDI Quantification · LVO Contrast · CEUS Abdominal Contrast + Contrast QA · Elastography
• iScape™ View · 4D software · Smart 3D / Volume / iPage / NT / OB · Auto EF · Smart IVC / VTI / Auto DFR
• DICOM MPPS / OB-GYN / Vascular / Cardiac / Breast SR

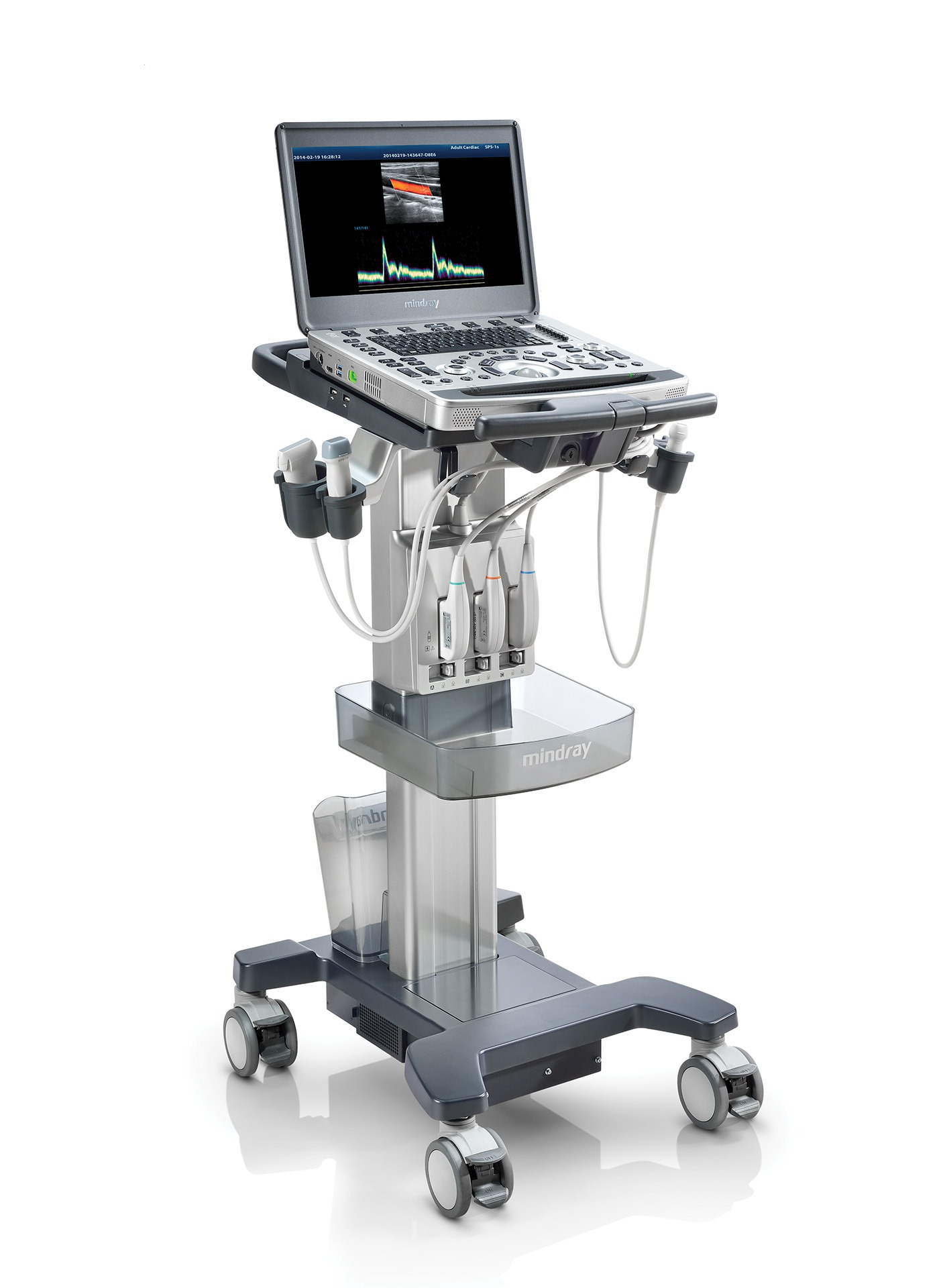

• UMT-500 Plus mobile cart · MT5 cart with Probe-EXT · PEM-51 triple transducer module · Sony B/W & color printers

Compatible transducers

• C5-1s convex (120-002719-00)
• C6-2Gs convex (120-003532-00)
• L9-3s linear (120-004780-00)
• L12-4s linear (120-001105-01)
• L14-6Ns linear (120-001112-01)
• L14-6Ws linear (120-003550-00)
• L20-5s linear 4–16 MHz (120-004388-00)
• L16-4Hs hockey stick (120-022071-00)
• SP5-1s single-crystal phased (120-002703-00)
• P8-2s phased (120-013744-00)
• P7-3Ts multiplane TEE (120-001903-01)
• P8-3Ts pediatric TEE (120-004576-00)
• P10-4s phased (120-002697-00)
• V11-3Ws endocavity (120-002781-00)
• CW2s (120-001443-00)
• CW5s (120-001862-00)
• C11-3s micro-convex (120-002713-00)
• D7-2s volume convex (120-004517-00)

Official Mindray® resources

• Datasheet (PDF)
• Transducer sheet (PDF)
• Brochure (PDF)

New unit — full Mindray North America factory warranty. Pricing available by quote to licensed providers. Request a quote or get verified for Provider Portal access. IncMD, Inc. is an authorized Mindray® distributor.
