Mindray TE Air e5M Wireless Handheld Ultrasound System

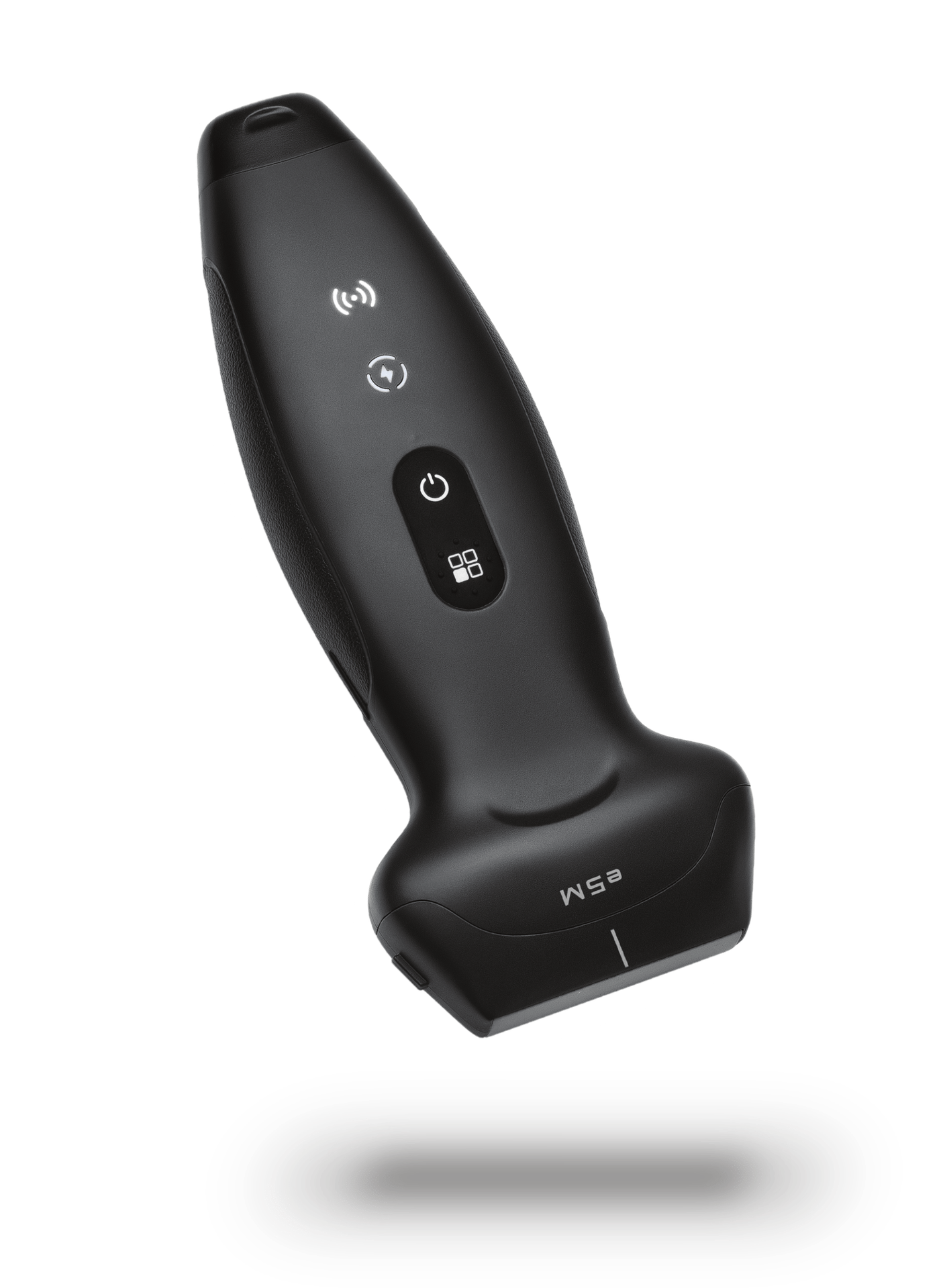

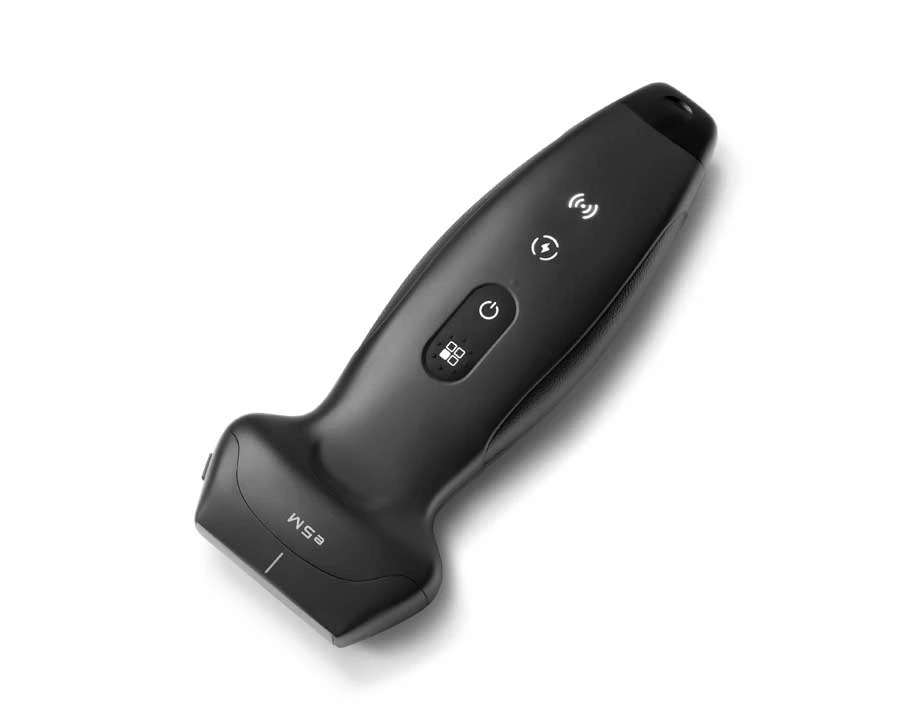

Versatility untethered. The TE Air e5M is Mindray’s wireless whole-body handheld ultrasound — a pocket-sized, IP68-rugged transducer that pairs with the TE Air App on your iOS or Android device. Powered by Mindray’s crystal technology and eWave platform, it delivers broadband imaging to 40 cm across vascular, MSK, OB/GYN, cardiac and more, with no cloud, no subscription, and no hidden costs.

Clinical applications

Cardiac · Abdominal · Thoracic/Pleural · Gynecology · Obstetrics · Vascular · Urology · Small Organ · Musculoskeletal · Nerve

Standard configuration

• Wireless single-probe whole-body scanning — pairs with TE Air App over Wi-Fi (no cables in the sterile field)
• Broadband e5M transducer: 2.0–9.0 MHz, 128 elements, convex + linear applications in one probe
• Scanning depth 2–38 cm · up to 8-beamforming · 251 body marks · 23 exam-mode presets
• Imaging modes: B, M, Color Doppler, Power Doppler, PW Doppler, TDI (Tissue Doppler)
• iTouch+™ one-click optimization (e5M-exclusive) · iClear™ speckle suppression · iWorks™ workflow protocols
• Smart tools: Smart Bladder · Smart Calc · PW Auto Calc · VA Grid vascular access · iNeedle needle visualization (e5M-exclusive)
• iScanHelper embedded tutorials with anatomy graphics and reference images
• IP68 waterproof/dustproof · fully immersible for high-level disinfection · sterile probe-cover compatible
• Onboard patient data management · export JPG images / MP4 cine · data encryption
• 3.85 V 1650 mAh Li-ion battery — 90–120 min continuous B-mode scanning · 0–90% charge in 35 min
• Dimensions 70×33×170 mm · weight 229 g · user-defined programmable button
• Three-year standard warranty (systems purchased directly from Mindray North America)

Available options & accessories

• Air Capsule — protective case + wireless charger in one (3.6 V 3000 mAh, ~2.5 transducer charges per cycle)
• GCX TE Air Portable Ultrasound Roll Stand (TRS Gen 1) — VESA mount, portrait/landscape lock, dual locking casters, cable management, 5-yr GCX warranty
• Apple iPad 11” (11th Gen, A16) — 128 GB, Wi-Fi 6, USB-C, purpose-configured for TE Air
• Wired Type-C charging cable · wireless charging dock

Connectivity

• DICOM 3.0 basic (Store) · DICOM Worklist · Media Exchange
• Wireless Ethernet network connection · PC mode
• Q-path · Tricefy image/report send · shared-folder export to PC

Official Mindray® resources

• Performance specifications datasheet (PDF)
• Product brochure (PDF)
• TE Air accessories flyer (PDF)

New unit — full 3-year Mindray North America factory warranty. Pricing available by quote to licensed providers. Request a quote or get verified for Provider Portal access. IncMD, Inc. is an authorized Mindray® distributor.
