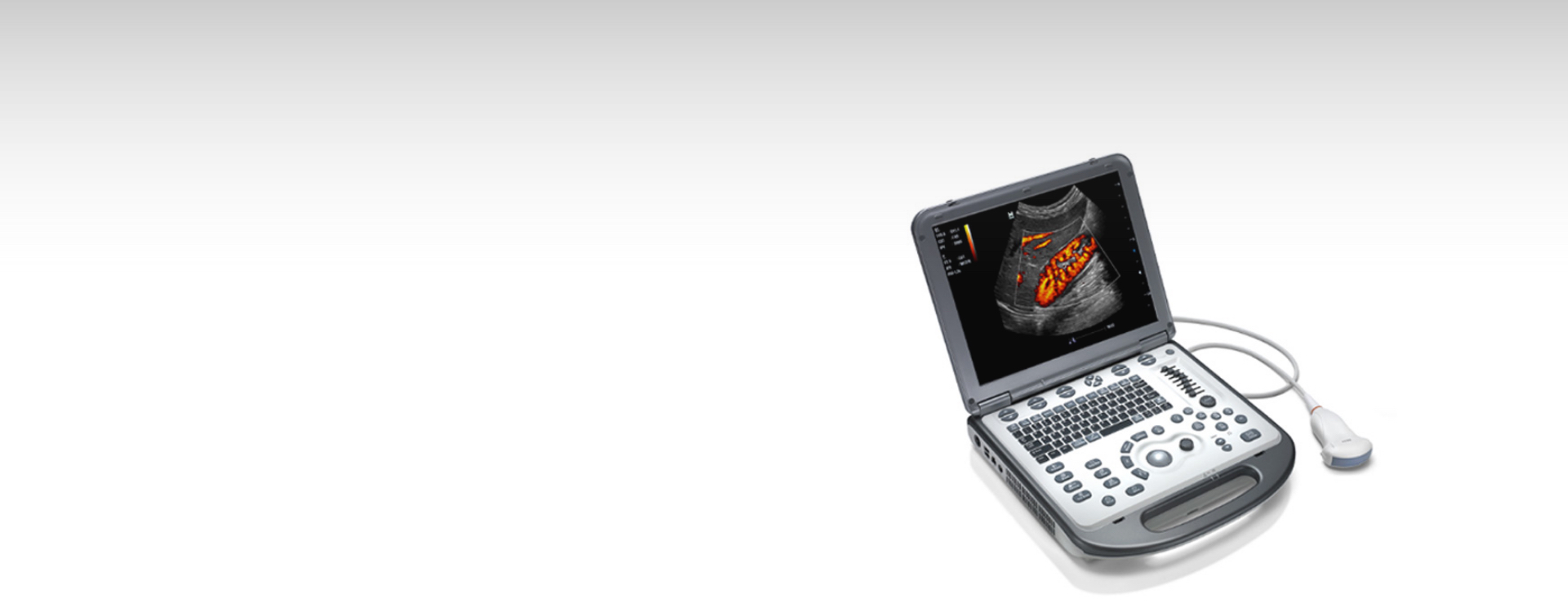

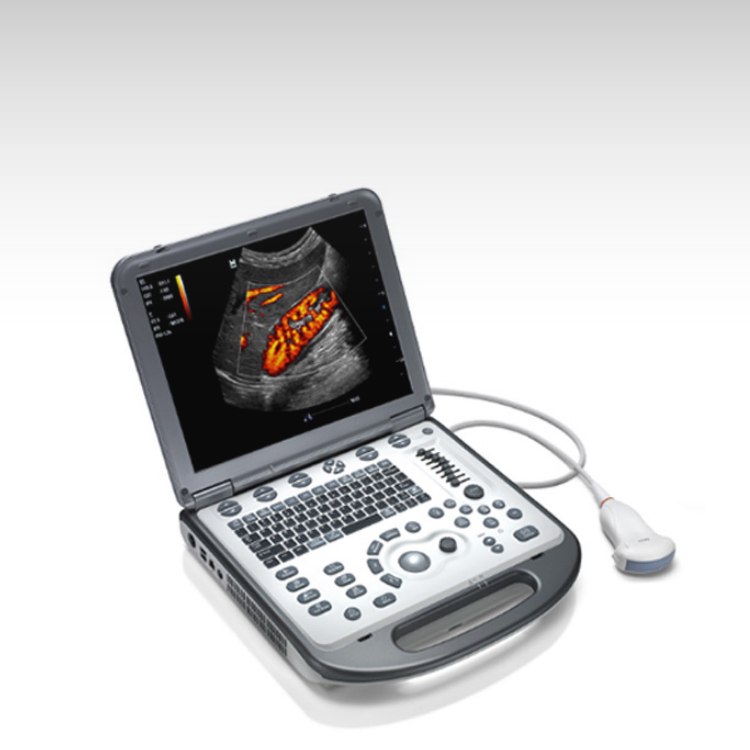

Mindray M6 Portable Ultrasound System

The M6 packs hospital-grade shared-service imaging into a laptop form factor — Standard and Advanced (4D) configurations for practices that move between rooms, sites, and specialties.

Standard configuration

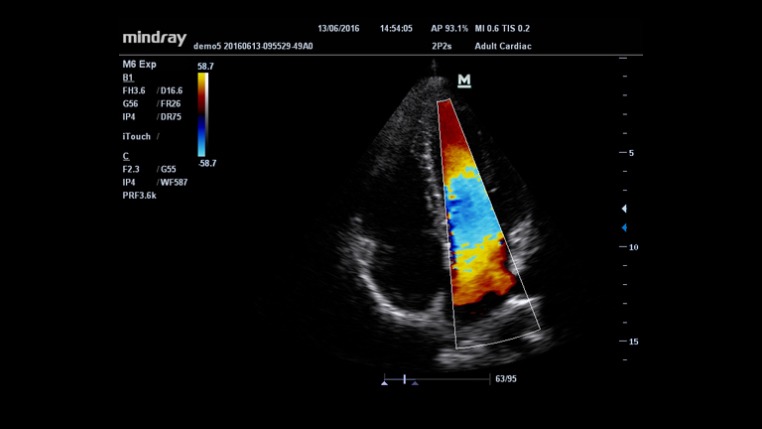

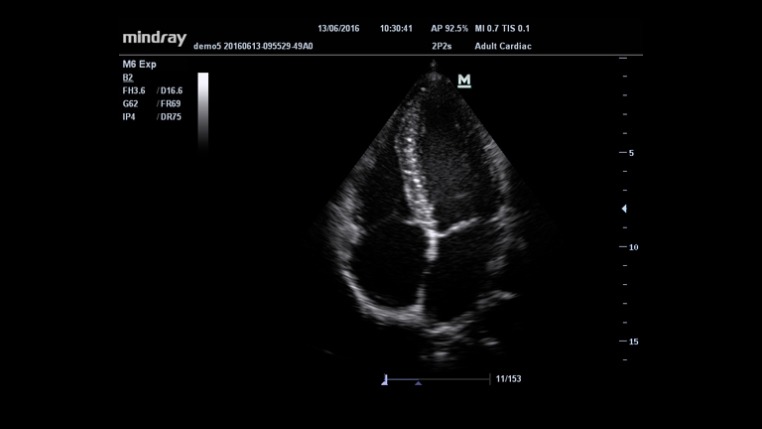

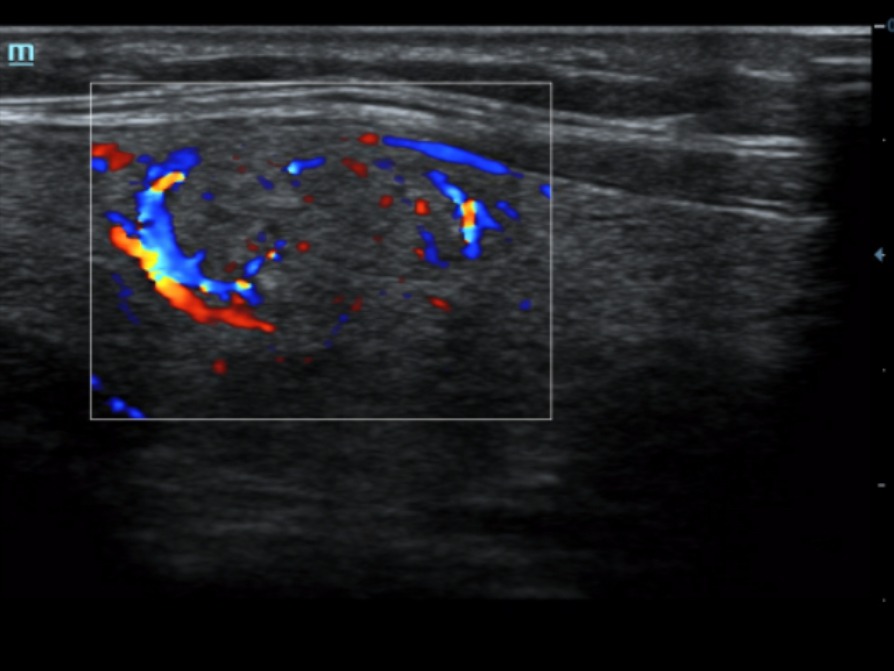

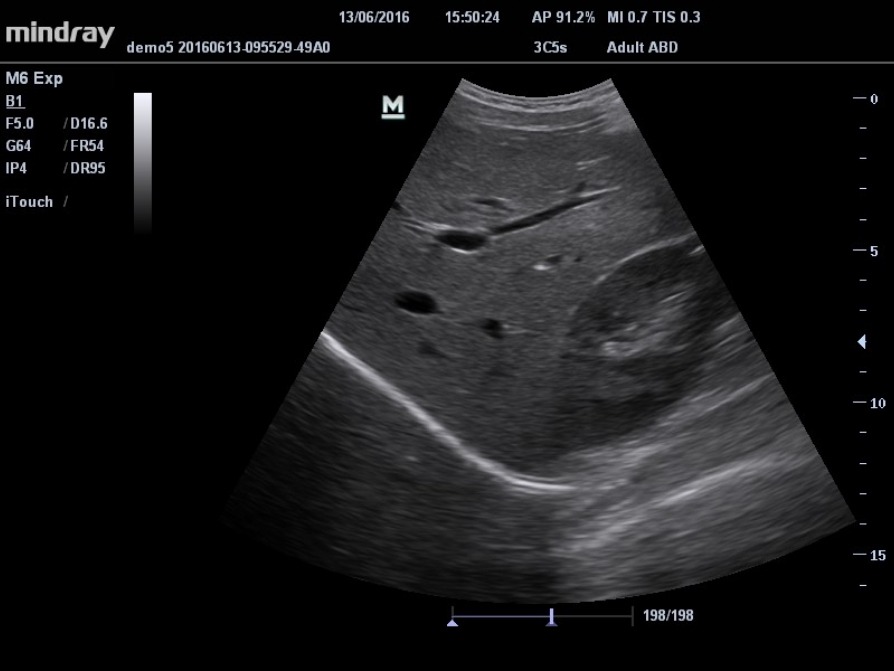

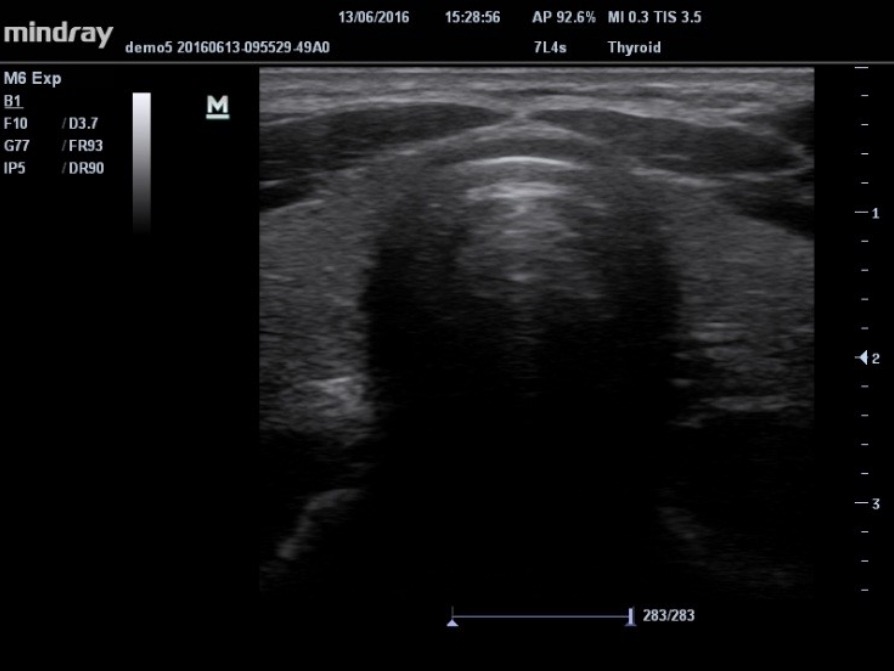

• 15-inch LCD · B/M/PW & HPRF · Color / Color M / Power / Directional Power Doppler
• Phased Inversion Tissue Harmonic Imaging (THI) · HR Flow

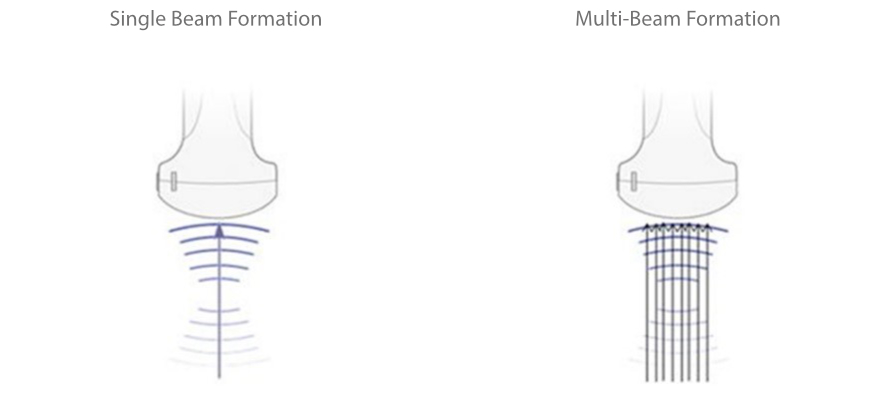

• iZoom · iTouch™ · iBeam™ · iClear™ · iStation™ image management · 1TB HDD
• DICOM Basic + Worklist · S-video output + two USB ports
• Shared service measurement, calculation & reporting packages
• AC adapter + Li-ion batteries · travelling case · iScanHelper
• Advanced configuration adds: 4D module

Available options

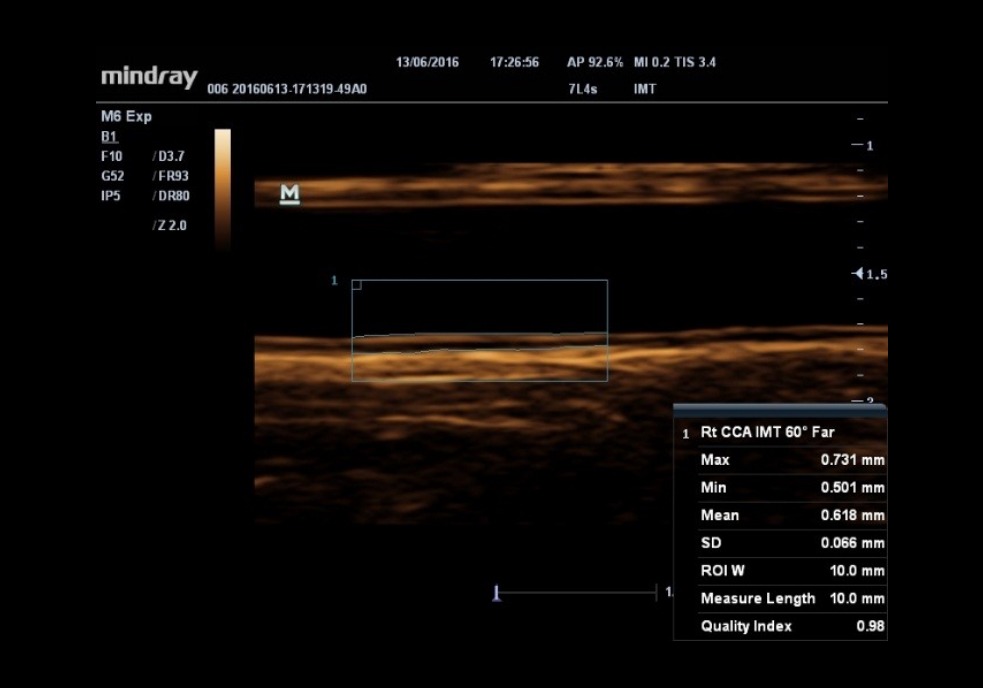

• Smart3D freehand 3D · Smart OB · iScape View panoramic · IMT carotid analysis

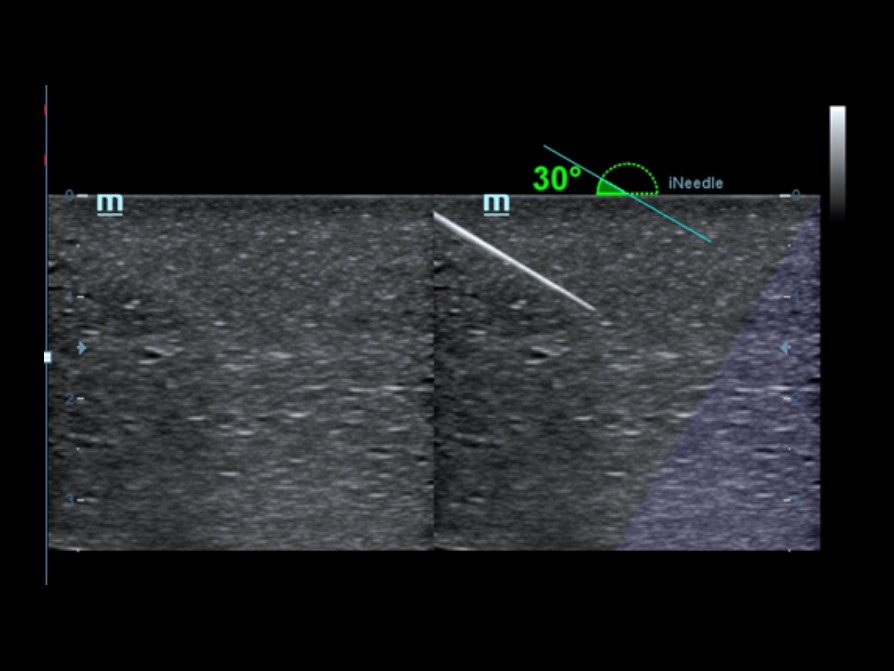

• Free Xros M anatomical M-mode · TDI (Color, Power, PW, M) · iNeedle · CW module
• DICOM MPPS / Query-Retrieve / OB-GYN / VAS / Cardiac SR
• iRoam wireless adaptor · ECG-21 module (AHA) · iDock extending module · V/A module · battery pack
• UMT-300 / UMT-300 Advanced carts (PEM-21 triple-transducer, internal DVD-RW) · UMT-200 trolley + PEM-11

Compatible transducers

• C5-2s convex 2–5 MHz (120-000171-00)
• C11-3s micro-convex (120-002713-00)
• V10-4s endocavity (PR1P-30-91164)
• L12-4s linear 4–12 MHz (120-001105-01)
• L14-6Ns linear 6–14 MHz (120-001112-01)
• L14-6s linear (120-000225-00)
• P4-2s phased 2–4 MHz (120-000004-00)
• D7-2s volume transducer (120-004517-00)
• CW2s Pedoff (120-001443-00)
• CW5s Pedoff (120-001862-00)
• 6LB7s intrarectal biplanar (PB1A-30-90878)

New unit — full Mindray North America factory warranty. Pricing available by quote to licensed providers. Request a quote or get verified for Provider Portal access. IncMD, Inc. is an authorized Mindray® distributor.
