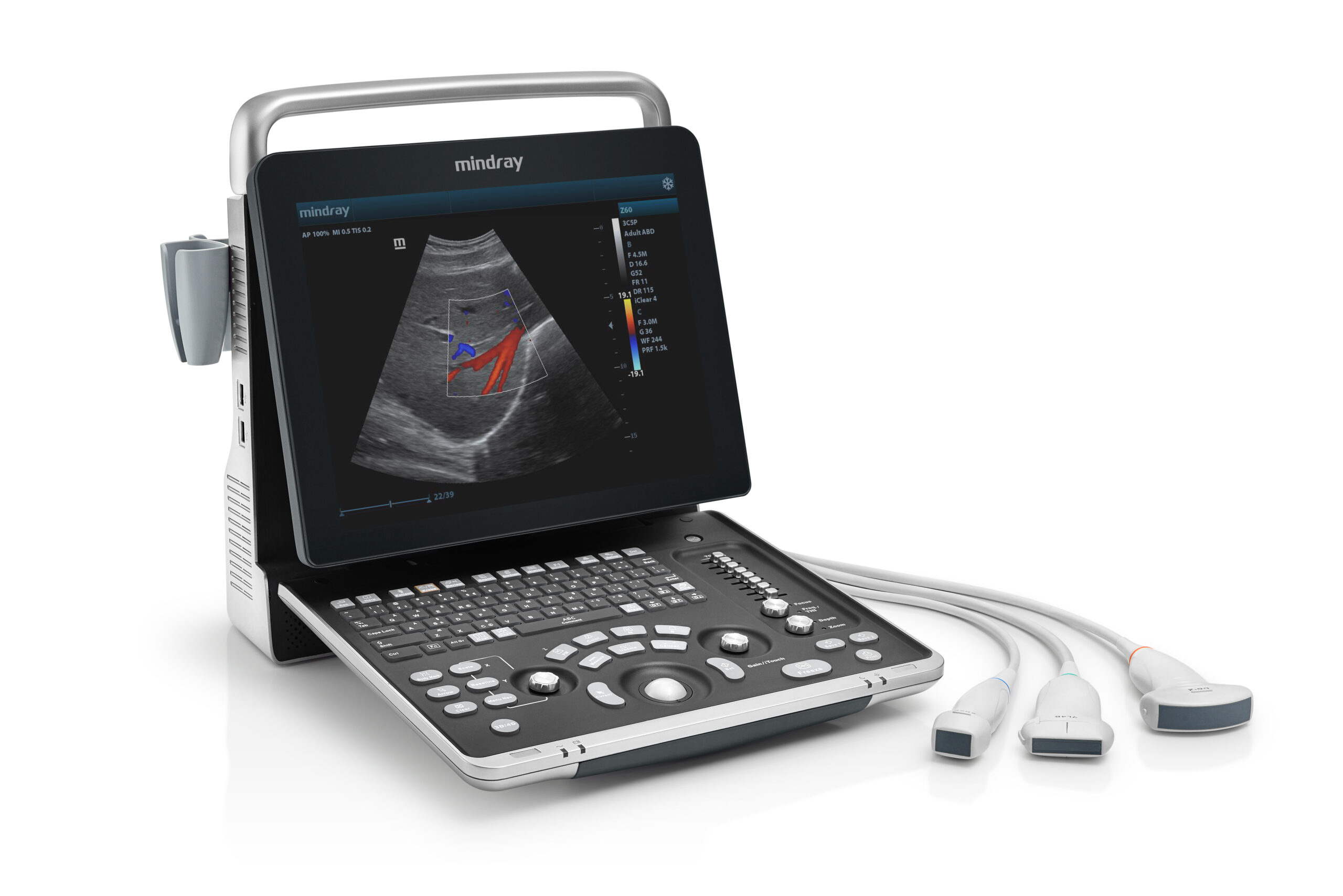

Mindray Z60 Diagnostic Ultrasound System

Full color Doppler in a portable platform. The Z60 brings console-grade color imaging — and an optional 4D configuration — to shared-service practices that scan everything from OB to vascular.

Standard configuration

• 15-inch LCD monitor · two transducer connectors
• Pulse Wave Doppler with High PRF
• Color / Power / Directional Power Doppler flow imaging · Color M mode
• 1TB hard disk + iStation™ · iBeam™ · iClear™ · iTouch™ · PSH™
• Trapezoid imaging/ExFOV · 8-segment TGC · MedSight™
• Shared Service packages: OB, Peds, Gyn, Abdomen, Urology, Small Parts, Vascular, Cardiology, Paediatrics, Nerve, Emergency Medicine
• DICOM Basic · iWorks™ · iPower™ battery (100 min)
• Z60 4D configuration adds: 4D Module + Smart 3D™ freehand 3D

Available options

• iScape™ panoramic · Auto IMT · iNeedle™ · Natural Touch Elastography
• UWN Contrast Imaging™ · Smart 3D™ · Smart OB™ · Smart Face · iLive™ rendering
• CW Mode · Free Xros M™ anatomical M-mode · TDI (TVI/TEI/TVD/TVM)
• DICOM Worklist / Query-Retrieve / MPPS / OB-GYN / Cardiac / Vascular SR

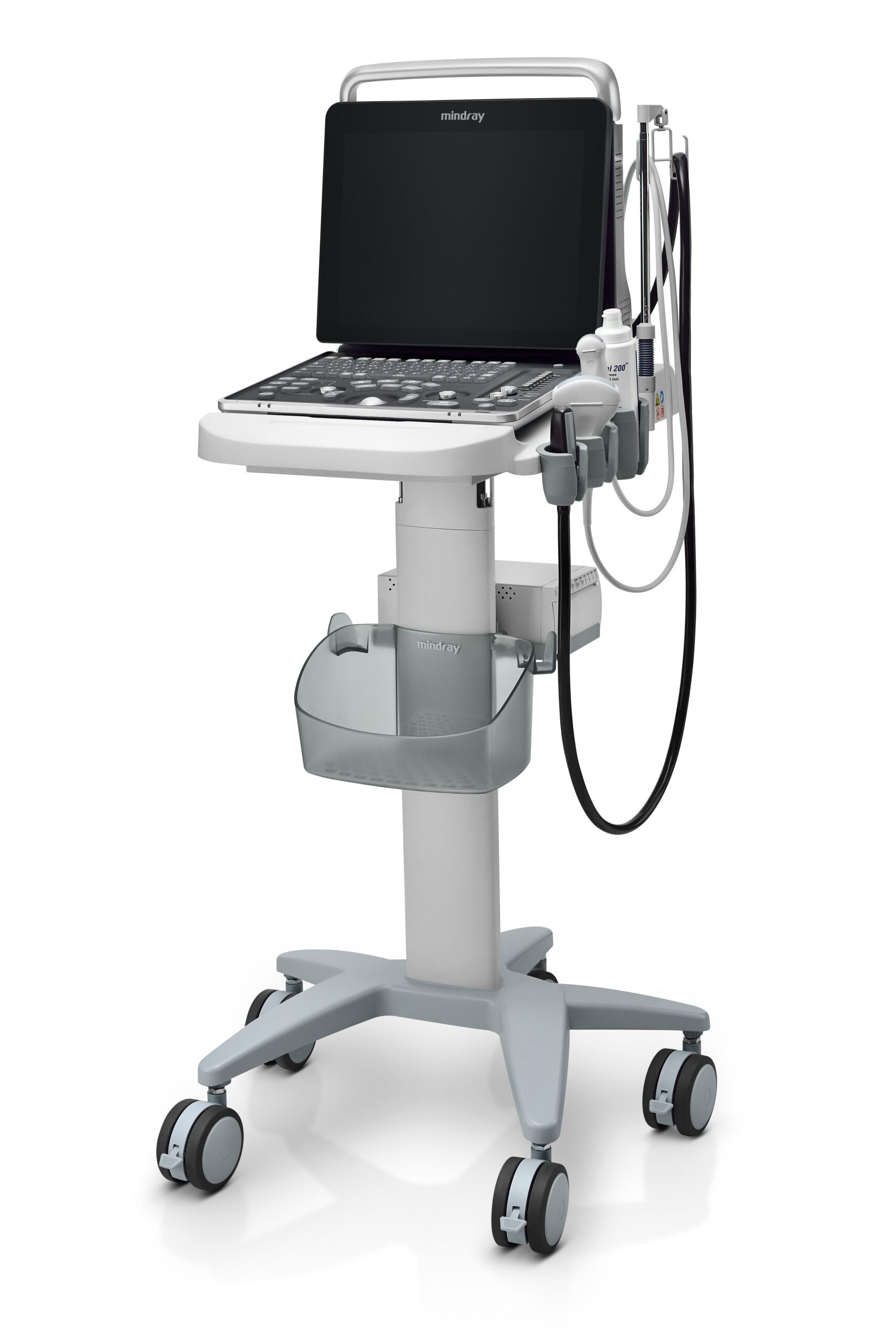

• UMT-300, UMT-300 Advanced & UMT-200 mobile trolleys · 4D Module

Compatible transducers

• C6-2P convex (120-013809-00)
• 6C2P micro-convex (120-001503-00)
• 6CV1P endocavity (120-001510-00)
• D6-2P volume convex (120-004137-00)
• 7L4BP linear (120-013757-00)
• L14-6P linear (120-001532-00)
• P7-3P phased (120-013750-00)
• 2P2P phased (120-001546-00)
• CB10-4P bi-plane (120-001539-00)
• 7LT4P intraoperative T-type (120-001630-00)
• 6LE7P intrarectal (120-001672-00)

Official Mindray® resources

• Datasheet (PDF)
• Transducer guide (PDF)
• Product brochure (PDF)

New unit — full Mindray North America factory warranty. Pricing available by quote to licensed providers. Request a quote or get verified for Provider Portal access. IncMD, Inc. is an authorized Mindray® distributor.
